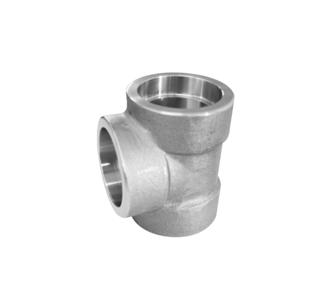

Socket Weld Tee
Description
Socket Welding Steel Fitting is different from butt-welded ones and threaded ones by the connection ways, well what we supplied are all forged fittings, no casting ones.
Specification
1.Socket Weld Tee
2.Material: Carbon steel and stainless steel, including: A105, 20#, 16Mn, 1cr5mo ,304, F11, F22, F5, 316L, P.R304 3163.
3.Type: Socket Weld Tee
4. Socket Weld Tee Size: 1/8"-4(DN6-DN100)
5.Pressure: 3000LB,6000LB,9000LB, Sch80, Sch160,SchXXS
6.Standard: GB/T14383SH 3410HG/T 21634ASME B 16.11JIS B2316
Application
Socket welding fittings are not only widely used in heavy industries like petrol industry, but also widely used in civil facilities like city water supply system and city firefight facilities.
|
Nominal Pipe Size |
Depth of Socket |
Wall Thickness |
Center to Bottom of Socket |
|
A |
|
C min |
90oElbow Tee Cross |
45oElbow |
|
DN |
NPS |
J min |
SCH80
3000 |
SCH160
6000 |
XXS
9000 |
SCH80
3000 |
SCH160
6000 |
XXS
9000 |
SCH80
3000 |
SCH160
6000 |
XXS
9000 |
6
8
10 |
1/8
1/4
3/8 |
10
10
10 |
3.2
3.8
4.0 |
4.0
4.6
5.1 |
--
--
-- |
11
11
14 |
11
14
16 |
--
--
-- |
8
8
8 |
8
8
11 |
--
--
-- |
15
20
25 |
1/2
3/4
1 |
10
13
13 |
4.5
5.0
5.6 |
5.6
7.0
7.9 |
9.4
9.8
11.4 |
16
19
22 |
19
22
27 |
25
29
32 |
11
13
14 |
13
14
18 |
16
19
21 |
32
40
50 |
11/4
11/2
2 |
13
13
16 |
6.3
6.3
7.0 |
7.9
8.9
11.0 |
12.2
12.7
13.9 |
27
32
38 |
32
38
41 |
35
38
54 |
18
21
25 |
21
25
29 |
22
25
29 |
65
80
100 |
21/2
3
4 |
16
16
19 |
8.9
10.0
10.7 |
12.5
13.8
-- |
--
--
-- |
41
57
67 |
57
64
-- |
--
--
-- |
29
32
41 |
32
35
-- |
--
--
-- |
1. The above list shows sizes of the same parts of Socket Welding (SW) fittings. The sizes of different codes pipes, socket diameter d1 and bore diameter d2 refer to the list of the pipe outside diameter, socket diameter and bore diameter of SW fittings.
2. As to the reducing fittings, size of the bore diameter d2 applies to the relevant size d2 of the reducing nominal pipe size, size of center to the bottom of socket A is same to the straight fittings.
3. Average of socket wall thickness around periphery shall be no less than listed values. The minimum values are permitted in localized areas.
4. Upper and lower values for each size are the respective maximum and minimum dimensions. |
