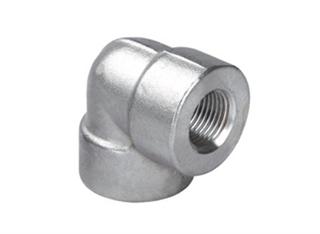

Forged Threaded Elbow

Forged Threaded Elbow
Description
Threaded joints probably represent the oldest method of joining piping systems. Like socket weld fittings, threaded fittings are mainly used for small pipe diameters (Small Bore Piping); generally for piping whose nominal diameter is NPS 2 or smaller.

Specification
1. 45^oThreaded Elbow
2. Material: Carbon steel and stainless steel, including: A105, 20#, 16Mn, 1cr5mo ,304, F11, F22, F5, 316L, P.R304 3163.
3. Type: 45^oThreaded Elbow, 90^oThreaded Elbow
4. Forged Threaded Elbow Size: DN6-DN100 (1/8"-4)
5.Pressure: 2000LB,3000LB,6000LB
6.Standard: ASME B1.20.1

Application
Installation productivity for threaded fitting is moderately high, and specialized installation skill requirements are not extensive.

Nominal Diameter		Center to End						Outside Diameter D			Wall Thickness			Length of Thread
		A						D			Cmin
		Elbow Tee Cross			45^oElbow			D			Cmin
DN	NPS	2000 LB	3000 LB	6000 LB	2000 LB	3000 LB	6000 LB	2000 LB	3000 LB	6000 LB	2000 LB	3000 LB	6000 LB	NPT	Rc
DN	NPS	Sch80	Sch160	XXS	Sch80	Sch160	XXS	Sch80	Sch160	XXS	Sch80	Sch160	XXS	NPT	Rc
6	1/8	21	21	25	17	17	19	22	22	25	3.0	3.0	6.5	6.5	6.5
8	1/4	21	25	29	17	19	22	22	25	33	3.0	3.5	6.5	8.0	10.0
10	3/8	25	29	33	19	22	25	25	33	38	3.0	3.5	7.0	9.0	10.5
15	1/2	29	33	38	22	25	29	33	38	46	3.0	4.0	8.0	11.0	13.5
20	3/4	33	38	44	25	29	33	38	46	56	3.0	4.5	8.5	12.5	14.0
25	1	38	44	51	29	33	35	46	56	62	3.5	5.0	10.0	14.5	17.5
32	1.1/4	44	51	60	33	35	43	56	62	75	4.0	5.5	10.5	17.0	18.0
40	1.1/2	51	60	64	35	43	44	62	75	84	4.0	5.5	11.0	18.0	18.5
50	2	60	64	83	43	45	52	75	84	102	4.5	7.0	12.0	19.0	19.0
65	2.1/2	76	83	95	52	52	64	92	102	121	5.5	7.5	15.5	23.5	29.0
80	3	86	96	106	64	64	79	110	121	146	6.0	9.0	16.5	26.0	30.0
100	4	106	114	114	79	79	79	146	152	152	6.5	11.0	18.5	27.5	33.0
