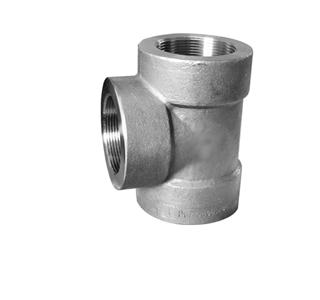

High Pressure Threaded Tee
Description
Leakage integrity for threaded fitting is good for low-pressure, low-temperature installations where vibration is not encountered, well rapid temperature changes may lead to leaks due to differential thermal expansion between the pipe and fittings.
Specification
1. Threaded Tee
2. Material: Carbon steel and stainless steel and LOW Cr-Mo ALLOY STEEL
3. Size: DN6-DN100 ; 1/8"-4
4. Type: THREADED NPT
5. Pressure: 2000Lbs - 3000Lbs - 6000Lbs
6. Standard: GB/T12716(ANSI/ASME B1.20.1)
Application:
High Pressure Threaded Tee is commonly used in low-cost, noncritical applications such as domestic water, fire protection, and industrial cooling water systems.
Nominal Diameter |
Center to End |
Outside Diameter D |
Wall Thickness |
Length of Thread |
|
A |
D |
Cmin |
|
Elbow Tee Cross |
45oElbow |
|
DN |
NPS |
2000
LB |
3000
LB |
6000
LB |
2000
LB |
3000
LB |
6000
LB |
2000
LB |
3000
LB |
6000
LB |
2000
LB |
3000
LB |
6000
LB |
NPT
|
Rc |
|
Sch80 |
Sch160 |
XXS |
Sch80 |
Sch160 |
XXS |
Sch80 |
Sch160 |
XXS |
Sch80 |
Sch160 |
XXS |
|
6 |
1/8 |
21 |
21 |
25 |
17 |
17 |
19 |
22 |
22 |
25 |
3.0 |
3.0 |
6.5
|
6.5 |
6.5 |
|
8 |
1/4 |
21 |
25 |
29 |
17 |
19 |
22 |
22 |
25 |
33 |
3.0 |
3.5 |
6.5 |
8.0 |
10.0 |
|
10 |
3/8 |
25 |
29 |
33 |
19 |
22 |
25 |
25 |
33 |
38 |
3.0 |
3.5 |
7.0 |
9.0 |
10.5 |
|
15 |
1/2 |
29 |
33 |
38 |
22 |
25 |
29 |
33 |
38 |
46 |
3.0 |
4.0 |
8.0 |
11.0 |
13.5 |
|
20 |
3/4 |
33 |
38 |
44 |
25 |
29 |
33 |
38 |
46 |
56 |
3.0 |
4.5 |
8.5 |
12.5 |
14.0 |
|
25 |
1 |
38 |
44 |
51 |
29 |
33 |
35 |
46 |
56 |
62 |
3.5 |
5.0 |
10.0 |
14.5 |
17.5 |
|
32 |
1.1/4 |
44 |
51 |
60 |
33 |
35 |
43 |
56 |
62 |
75 |
4.0 |
5.5 |
10.5 |
17.0 |
18.0 |
|
40 |
1.1/2 |
51 |
60 |
64 |
35 |
43 |
44 |
62 |
75 |
84 |
4.0 |
5.5 |
11.0 |
18.0 |
18.5 |
|
50 |
2 |
60 |
64 |
83 |
43 |
45 |
52 |
75 |
84 |
102 |
4.5 |
7.0 |
12.0 |
19.0 |
19.0 |
|
65 |
2.1/2 |
76 |
83 |
95 |
52 |
52 |
64 |
92 |
102 |
121 |
5.5 |
7.5 |
15.5 |
23.5 |
29.0 |
|
80 |
3 |
86 |
96 |
106 |
64 |
64 |
79 |
110 |
121 |
146 |
6.0 |
9.0 |
16.5 |
26.0 |
30.0 |
|
100 |
4 |
106 |
114 |
114 |
79 |
79 |
79 |
146 |
152 |
152 |
6.5 |
11.0 |
18.5 |
27.5 |
33.0 |
|
