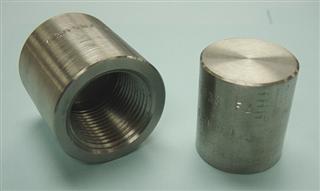

Threaded Cap
Description
All threaded fittings we supplied are with NPT thread, according to ASME B1.20.1.
In hazardous piping systems threaded connections should be avoided, if possible. Their vulnerability to fatigue damage is significant, especially where exposed threads are subject to corrosion.
Stainless Steel Threaded Cap Specification
1. Threaded Cap
2. Material: Carbon steel and stainless steel
3. Size: DN6-DN100(1/8"-4)
4. Stainless Steel Threaded Cap Type: Threaded full coupling; Threaded half coupling
5. Pressure: 2000LB, 3000LB, 6000LB
6. Standard: GB/T12716(ANSI/ASME B1.20.1)
Application:
Threaded cap also be called end cap, we use them to Seal the threaded end of pipe
Nominal Diameter |
The Length of Coupling and Cap |
Outside Diameter |
End Wall Thickness |
Length of Thread |
|
E |
F |
D |
Cmin |
|
DN |
NPS |
3000LB |
6000LB |
3000LB |
6000LB |
3000LB |
6000LB |
3000LB |
6000LB |
B |
L2 |
|
Sch160 |
XXS |
Sch160 |
XXS |
Sch160 |
XXS |
Sch160 |
XXS |
|
6 |
1/8 |
32 |
32 |
19 |
- |
16 |
22 |
5.0 |
- |
6.5 |
6.5 |
|
8 |
1/4 |
35 |
35 |
25 |
27 |
19 |
25 |
5.0 |
6.5 |
8.0 |
10.0 |
|
10 |
3/8 |
38 |
38 |
25 |
27 |
22 |
32 |
5.0 |
6.5 |
9.0 |
10.5 |
|
15 |
1/2 |
48 |
48 |
32 |
33 |
29 |
38 |
6.5 |
8.0 |
11.0 |
13.5 |
|
20 |
3/4 |
51 |
51 |
37 |
38 |
35 |
44 |
6.5 |
8.0 |
12.5 |
14.0 |
|
25 |
1 |
60 |
60 |
41 |
43 |
44 |
57 |
9.5 |
11.0 |
14.5 |
17.5 |
|
32 |
1.1/4 |
67 |
67 |
44 |
46 |
57 |
64 |
9.5 |
11.0 |
17.0 |
18.0 |
|
40 |
1.1/2 |
76 |
76 |
44 |
48 |
64 |
76 |
11.0 |
12.5 |
18.0 |
18.5 |
|
50 |
2 |
86 |
86 |
48 |
51 |
76 |
92 |
12.5 |
16.0 |
19.0 |
19.0 |
|
65 |
2.1/2 |
92 |
92 |
60 |
64 |
92 |
108 |
16.0 |
19.0 |
23.5 |
29.0 |
|
80 |
3 |
108 |
108 |
65 |
68 |
108 |
127 |
19.0 |
22.0 |
26.0 |
30.5 |
|
100 |
4 |
121 |
121 |
68 |
75 |
140 |
159 |
22.0 |
28.5 |
27.5 |
33.0 |
|
