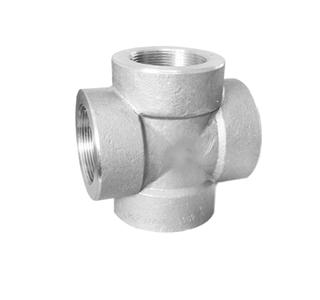

Pipe Fitting Threaded Cross

Pipe Fitting Threaded Cross
Description
Threaded fittings are normally made of cast gray or malleable iron, cast brass or bronze or forged alloy and carbon steel. What we are supplying are forged fittings, material carbon steel, stainless steel and alloy steel by order. They are available in three pressure ratings: 2000lbs, 3000lbs and 6000lbs

Specification
1.Threaded Cross
2.Material: carbon steel, stainless steel and alloy steel by order
3. Size: DN6-DN100 ; 1/8"-4
4.Type: THREADED NPT
5.Pressure: 2000Lbs - 3000Lbs - 6000Lbs
6.Standard: GB/T12716(ANSI/ASME B1.20.1)

Application:

The Pipe Fitting Threaded Cross is the best known and most widely used connection where the pipe thread provides both the mechanical joint and the hydraulic seal.

Nominal Diameter		Center to End						Outside Diameter D			Wall Thickness			Length of Thread
		A						D			Cmin
		Elbow Tee Cross			45^oElbow			D			Cmin
DN	NPS	2000 LB	3000 LB	6000 LB	2000 LB	3000 LB	6000 LB	2000 LB	3000 LB	6000 LB	2000 LB	3000 LB	6000 LB	NPT	Rc
DN	NPS	Sch80	Sch160	XXS	Sch80	Sch160	XXS	Sch80	Sch160	XXS	Sch80	Sch160	XXS	NPT	Rc
6	1/8	21	21	25	17	17	19	22	22	25	3.0	3.0	6.5	6.5	6.5
8	1/4	21	25	29	17	19	22	22	25	33	3.0	3.5	6.5	8.0	10.0
10	3/8	25	29	33	19	22	25	25	33	38	3.0	3.5	7.0	9.0	10.5
15	1/2	29	33	38	22	25	29	33	38	46	3.0	4.0	8.0	11.0	13.5
20	3/4	33	38	44	25	29	33	38	46	56	3.0	4.5	8.5	12.5	14.0
25	1	38	44	51	29	33	35	46	56	62	3.5	5.0	10.0	14.5	17.5
32	1.1/4	44	51	60	33	35	43	56	62	75	4.0	5.5	10.5	17.0	18.0
40	1.1/2	51	60	64	35	43	44	62	75	84	4.0	5.5	11.0	18.0	18.5
50	2	60	64	83	43	45	52	75	84	102	4.5	7.0	12.0	19.0	19.0
65	2.1/2	76	83	95	52	52	64	92	102	121	5.5	7.5	15.5	23.5	29.0
80	3	86	96	106	64	64	79	110	121	146	6.0	9.0	16.5	26.0	30.0
100	4	106	114	114	79	79	79	146	152	152	6.5	11.0	18.5	27.5	33.0
