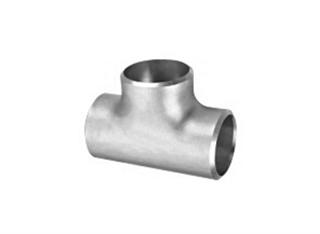

Stainless Steel Butt Weld Fitting
Description
Carbon steel fitting and stainless pipe fitting are what we do most; we also supply alloy steel fittings by order. We supply carbon steel tee and stainless steel tee, both including straight ones and reducing ones.
Stainless Steel Butt Weld Fitting Specification
1.Butt-Welded Steel Tee
2.Material: Carbon steel fitting ASTM A234-WPB; A420-WPL6.A234-WP12.A234-WP11; A234-WP5.A403-WP304.
Stainless steel fitting A403-WP304L.A403-WP316.A403-WP316L.
3.Type: Straight Tee, Reducing Tee
4.Size: 1/2~34(DN15-DN850); 1/2"*3/4~32*34"(DN15*DN20~DN800*DN850)
5.Standard: GB 12459GB/T 13401SH 3408SH 3409HG/T 21635HG/T 21631SY/T 0510ASME B16.9
Application
Stainless Steel Butt Weld Fitting are used as accessories for steel pipes. Widely used in city water supply systems, food and beverage industry, medicine Industry and so on
Note: For steel pipe fittings OD≥28we can only do welded ones which are made of welded steel pipes
Nominal Pipe Size |
Center to End |
|
DN |
NPS |
C |
M |
|
15 |
1/2 |
25 |
25 |
20
20×15 |
3/4
3/4×1/2 |
29 |
29
29 |
25
25×20
25×15 |
1
1×3/4
1×1/2 |
38 |
38
38
38 |
32
32×25
32×20
32×15 |
11/4
11/4×1
11/4×3/4
11/4×1/2 |
48 |
48
48
48
48 |
40
40×32
40×25
40×20
40×15 |
11/2
11/2×11/4
11/2×1
11/2×3/4
11/2×1/2 |
57 |
57
57
57
57
57 |
50
50×40
50×32
50×25
50×20 |
2
2×11/2
2×11/4
2×1
2×3/4 |
64 |
64
60
57
51
44 |
65
65×50
65×40
65×32
65×25 |
21/2
21/2×2
21/2×11/2
21/2×11/4
21/2×1 |
76 |
76
70
67
64
57 |
80
80×65
80×50
80×40
80×32 |
3
3×21/2
3×2
3×11/2
3×11/4 |
86 |
86
83
76
73
70 |
90
90×80
90×65
90×50
90×40 |
31/2
31/2×3
31/2×21/2
31/2×2
31/2×11/2 |
95 |
95
92
89
83
79 |
|
